Radiator core assembly
For the radiator core assembly line, document powertrain: Engine or hybrid designation, transmission and drivetrain. Add required quantity, included hardware, packing and destination.
RAV4 cross-market identification · gasoline · hybrid · FWD · AWDInternational B2B inquiry · no retail checkout
Cooling System · decision page
Toyota RAV4 Radiators

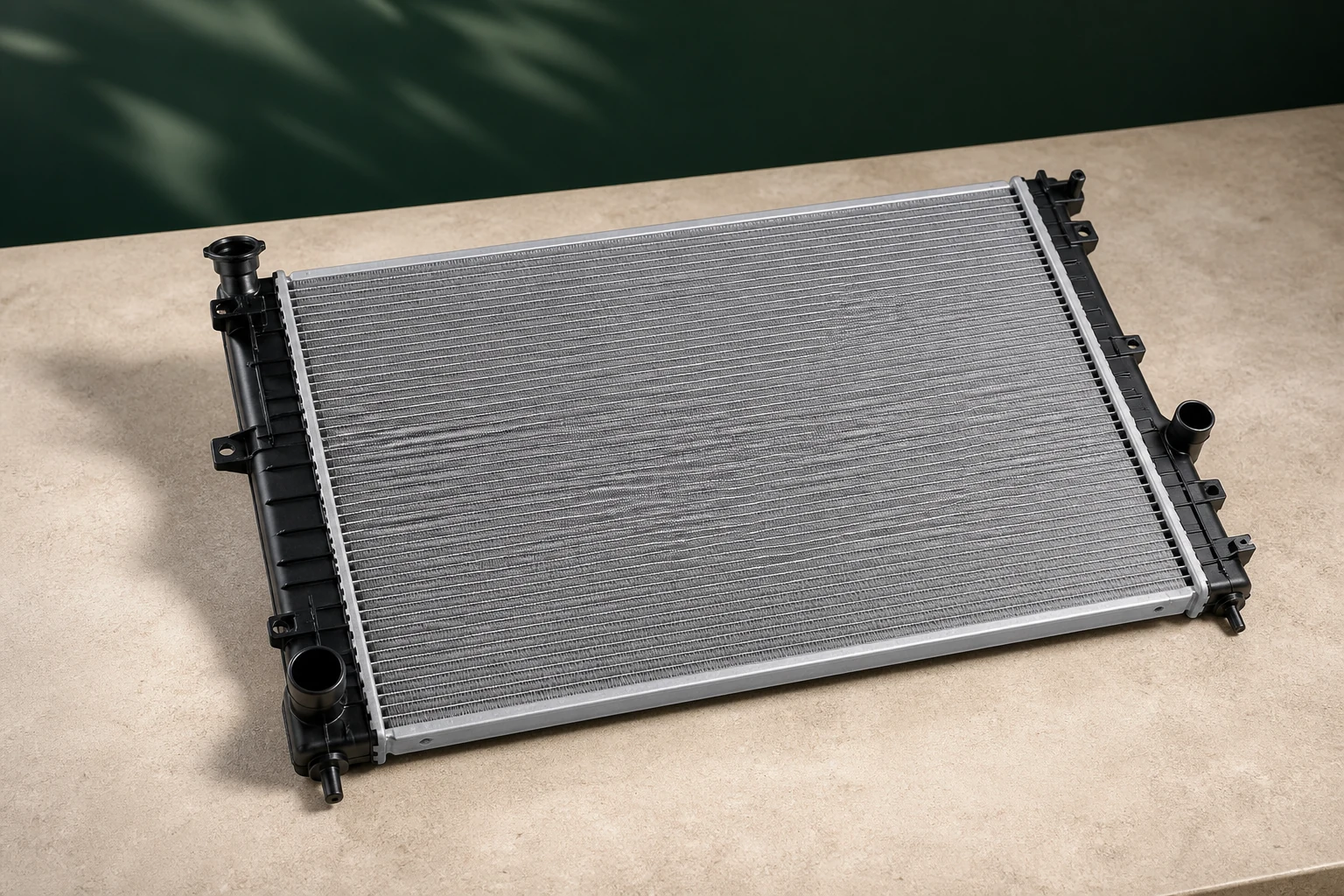

Cooling assemblies that share an outer shape can differ at hose ports, cooler fittings, mounting pins and fan-shroud interfaces.
Decision matrix
Keep these checks on the same RFQ line.
Every field should describe the specific requested item, not merely the vehicle family.
PowertrainEngine or hybrid designation, transmission and drivetrain.
CoreCore width, height and thickness measured without the tanks unless specified.
Ports and fittingsHose positions, cooler fittings, drain and sensor provisions.
MountingTop and bottom pin locations, fan-shroud interfaces and packing request.
Searchable reference evidence
RAV4 radiator OE and Toyota service part numbers.
These documented numbers are identification starting points, not universal fitment or a stock claim. Confirm VIN/model code, production date, market, powertrain, side and original-part evidence before quotation.
OE / service referenceDocumented catalog scope
16400-0V0302009–2015 · 2.5 L gasoline catalog reference
16400-F00102019–2025 · selected North America-built gasoline/hybrid configurations
16400-251302019–2025 · selected Japan-built gasoline configurations
16400-251902019–2021 · selected Japan-built hybrid configurations
!
Do not assume interchangeability
Do not approve a radiator from overall width alone. Port layout and cooler provisions must match the vehicle system.
Request scope
Write the included components explicitly.
Similar buyer terminology can describe a different kit, side, finish or packing scope.
With or without cooler fittings
For the with or without cooler fittings line, document core: Core width, height and thickness measured without the tanks unless specified. Add required quantity, included hardware, packing and destination.
Fan-and-shroud request
For the fan-and-shroud request line, document ports and fittings: Hose positions, cooler fittings, drain and sensor provisions. Add required quantity, included hardware, packing and destination.
Continue the buying path
Verify the application, then compare related lines.
Return to the complete system index, prepare a stronger evidence pack, compare an adjacent request line or continue to a matching POPXA company catalogue page where one exists.
Parent system
Cooling System
Cooling requests must identify the circuit. Gasoline engine cooling, hybrid support and inverter cooling cannot be combined under one generic radiator or pump line.
Buyer guideRAV4 part identification guide
Prepare vehicle records, reference photos, dimensions, connector views and clear filenames before quotation.
Related lineWater Pumps
Engine pumps and hybrid auxiliary pumps belong to different circuits. Identify the circuit, drive method and included housing before requesting price.
Buyer questions
RAV4 radiator identification.
Use these answers to prepare a clearer first request.
Is a Toyota RAV4 model year enough to quote radiator?
No. Send the production period, market, powertrain or drivetrain evidence and the part-specific checks listed on this page.
What should a wholesale RAV4 radiator RFQ include?
Record powertrain, core, ports and fittings, mounting together with quantity, packing, destination port and the preferred Incoterm.
How should the RAV4 radiator OE numbers on this page be used?
Use them as search and identification references within the stated catalog scope. They do not confirm universal fitment, current stock, price or supersession without a reviewed vehicle and part record.
Build a traceable request
Send a RAV4 parts field list.
Include vehicle generation or production period, market, engine or hybrid designation, drivetrain, part reference or photos, position, quantity, packing and destination. A listing is not automatic fitment or availability confirmation.
